Product Description |
Details |
Wattage |
40 Watt |
Average life |
50000 Hours |
Housing |

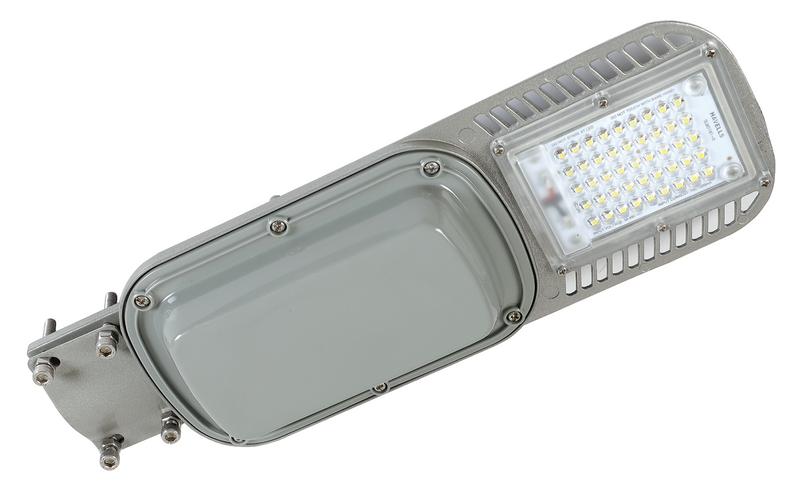

Pressure die-cast aluminium alloy for housing (heat sink) for effective thermal management, sturdiness, excellent corrosion resistant, separate optical and control gear compartment & Bottom opening for easy maintenance. |
Light Source |
High efficiency long life LED module with SMD LED package mounted on MCPCB. Lumen efficacy of LED >140 lm/W. |
Optics |
High efficiency polycarbonate UV stablized cover with integrated Lens to ensure Asymmetrical batwing light distribution. (For detailed photometric data, please refer LM79 report & IES file). |
Electronic Driver |
Powered by built-in potted LED driver (SMPS based constant current supply) with lower THD, Output Open / Short Circuit protection, Phase to Phase protection (Operation at 440 V AC), Over Voltage protection, Surge Voltage protection 6kV & other safety test as per IS 15885 Part-2/ Sec 13. |
Mounting |
Suitable for side entry, pole mounting with bracket arm OD 35mm-42mm. Recommended mounting height with suitable inground reinforcement is 3-6 m |
IP Rating |
IP66 |
IK Rating |
IK08 |
Nominal Voltage (V) |
220-240 V |
Mains Current (A) |
0.190 A |
Power Factor |
0.95 |
THD |
≤10 |
Colour Temp. (CCT) |
6500 K |
CRI (Ra) |
≥70 |
System Lumens (lm) |
4800 Lumens |
Colour of Fixture |
Grey |
Length (l) |
420 mm |
Width (w) |
124 mm |
Height (H) |
72 mm |
Mounting Bracket Dia (Ø) |
42 mm |
