General purpose industrial compact batten suitable for single or twin LED Tubelight with integral LED driver, available in single / double side connection options. Item Code: - REGALBATTENT8UPTO1X22WDSBSWH Product Details: - Product Description Details Housing & Cover Housing & cover made up of CRCA sheet steel. Cover is fixed to the...

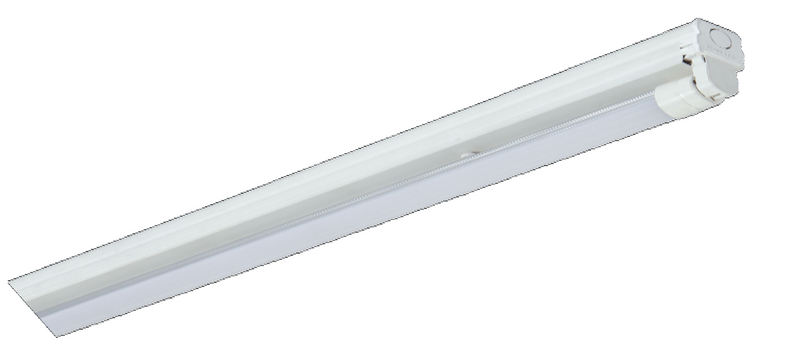

General purpose industrial compact batten suitable for single or twin LED Tubelight with integral LED driver, available in single / double side connection options. Item Code: - REGALBATTENT8UPTO1X22WDSBSWH
Product Details: -
| Product Description | Details |
| Housing & Cover | Housing & cover made up of CRCA sheet steel. Cover is fixed to the housing by means of 2 nos. bolt with engineering plastic head. |
| Finish | Epoxy powder coated white after phosphochromate treatment. |
| Lamp holders | Push fit type white polycarbonate housing and ABS rotor with corrosion resistant brass contacts. |
| Light source | Complete internal wiring suitable for retrofit LED tubelight with single / double side connections. * LED Tube Light Data Sheet (Supply connection on opposite side) # LED Tube Light Data Sheet (Supply connection on one side) |
| Optics | White power coated CRCA sheet used as Reflector. |
| Mounting | On ceiling/ wall with screws at a distance of 900 mm, suspend by 2 nos. Ø19 mm conduit pipe at a distance of 600 mm or with chains at a distance of 700 mm. |

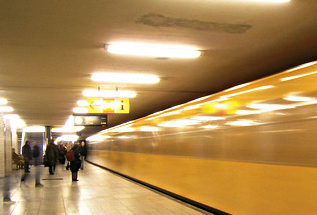

| Applications | Schools Lobbies Residences Industrial bays Railway platforms Godowns/ garages |
| IP Rating | IP20 |
| IK Rating | IK03 |
| Nominal Voltage (V) | 250 |
| Lamp | upto 1x22W LED T8 |
| Lamp Holder | G 13 |
| LxWxH (in mm) | 1224x38x68 |
| Weight (kg) | 2.1 |
