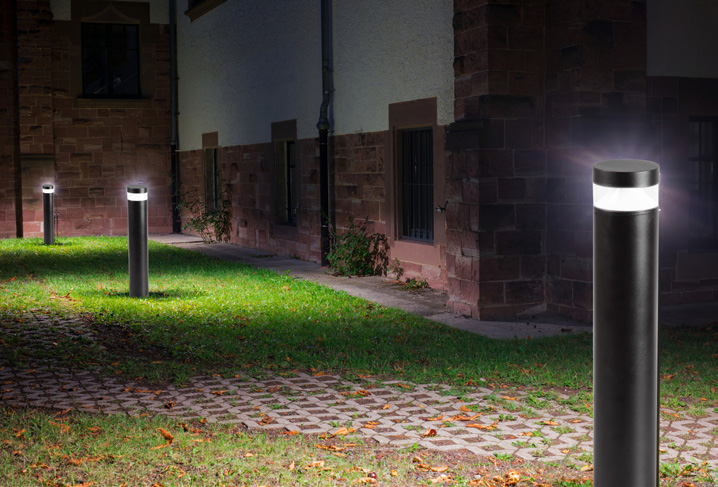

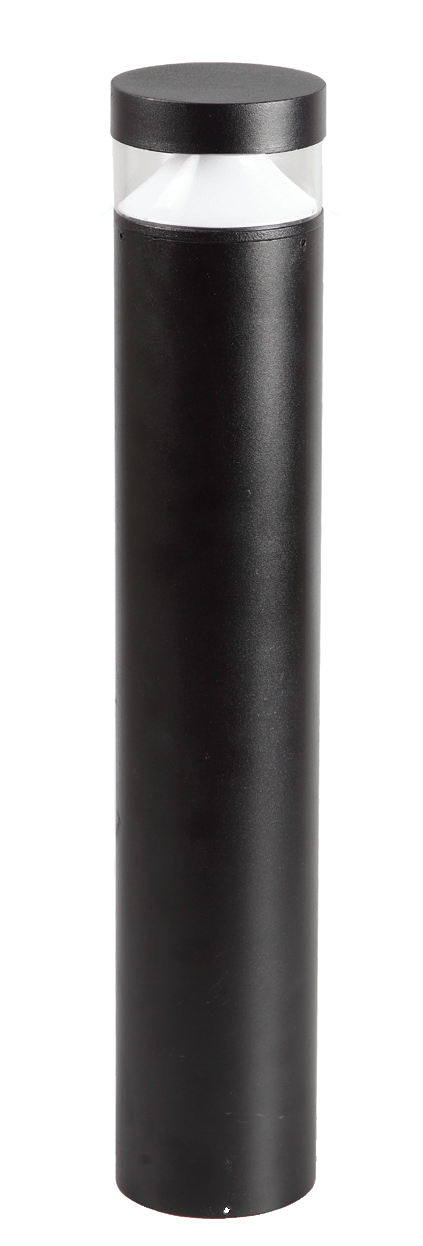

New generation LED Bollard, energy saving, environmental friendly, long life, aesthetically designed with symmetrical light distribution, die-cast aluminium landscape luminaire with mid power LED as light source. Item Code:- MINIMOUNTBL10WLED830PSYMTOPMMA Product Details:- Product Description Details Wattage 10 Watt Features & Benefits • Delivers excellent illumination & comfort• Long life & photobiologically...
New generation LED Bollard, energy saving, environmental friendly, long life, aesthetically designed with symmetrical light distribution, die-cast aluminium landscape luminaire with mid power LED as light source. Item Code:- MINIMOUNTBL10WLED830PSYMTOPMMA
Product Details:-
| Product Description | Details |
| Wattage | 10 Watt |
| Features & Benefits | • Delivers excellent illumination & comfort • Long life & photobiologically safe LED’s • High performance electronic driver ensures zero maintenance • No harmful UV & IR radiations • Environment friendly as it does not contain Mercury • Instant light with low running temperatures • Operating temperature: -10 °C to +45 °C • Operating voltage range: 140 V - 270 V • Average life L70B50: 50000 hours |
| Housing & Finish | Housing made up of aluminum pipe UV protected pure polyester powder coated black after phosphochromate treatment It consists of aluminum heat sink for effective thermal management, sturdiness & excellent corrosion resistant. Mounting flange of MS sand casting is used at the bottom. |
| Light source | High efficiency long life LED module with SMD LED package mounted on MCPCB. Lumen efficacy of LED >130 lm/W (For detailed photometric data,please refer LM79 report & IES file). |
| Cover | Clear diffuser is used for glare free uniform light distribution. |
| Electronic driver | Powered by built-in, isolated, potted electronic LED driver in ABS housing with APFC (SMPS based constant current supply) with lower THD, Output Short / Open Circuit protection, Over Voltage protection, Surge Voltage protection 3.0KV (CM & DM) & other safety test as per IS 15885 Part-2/Sec 13. |
| Mounting | Fixed to ground by means of 2 nos. M10 bolts (max). |
| Applications | Lawns Gardens Pathways Court yards Decorative porch lighting Parks & Plazas |
| IP Rating | IP65 |
| IK Rating | IK07 |
| Nominal Voltage (V) | 240 V |
| Mains Current(A) | 0.045 |
| Power Factor | ≥0.95 |
| THD (%) | ≤20 |
| Colour Temp. (CCT) | 3000K |
| CRI (Ra) | ≥80 |
| System Lumens (lm) | 500 Lumens |
| Colour of Fixture | Black |
| Weight (kg) | 1.5 kg |
| Height (mm) | 600 mm |
