| Product Description |
Details |
| Wattage |
36 Watt |
| Features & Benefits |
• Delivers excellent illumination & comfort in high ceiling areas
• Long life & photobiologically safe LEDs
• High performance electronic driver ensures zero maintenance
• No harmful UV & IR radiations
• Environment friendly as it does not contain Mercury
• Instant light with low running temperatures
• UGR<19
• Flicker Free (Ripple <5%)
• Operating temperature: -10 °C to +45 °C
• LED Life L70 >50000 hrs.
• Operating voltage range:140-270VAC |
| Housing & Finish |
CRCA powder coated white after phosphochromate treatment. |
| Optics |
High transmittance prismatic diffuser for UGR<19 and glare free symmetric light distribution. |
| Light source |
High efficiency long life LED package in integral module with lumen efficacy of >150 lm/W and viewing angle of 120° to ensure better uniformity. |
| Electronic driver |
Powered by an independent, Isolated electronic LED driver (SMPS based constant current supply) with Output Short-circuit protection, Surge protection upto 3.5kV & other reliability test as per IS:15885 Part 2/Sec 13 & CISPR15. |
| Mounting |
Suitable only for Armstrong/Grid ceiling. |
| Applications |

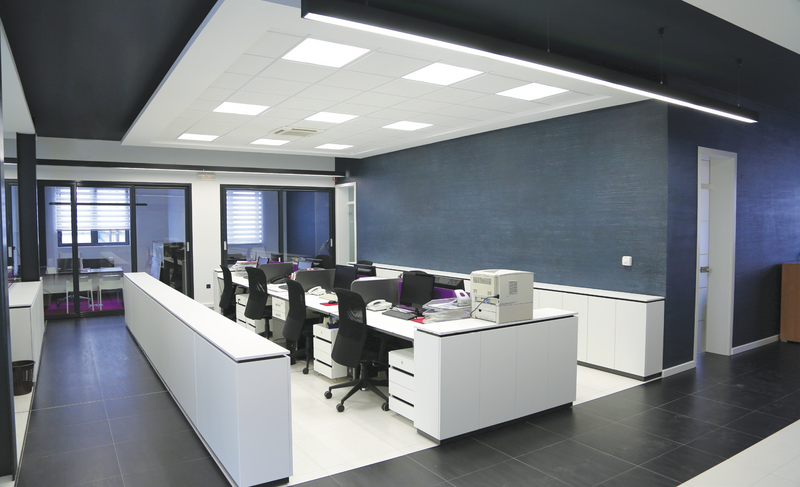

Airport lounges
Corporate offices
Banks & ATM outlets
Software centers
Modern work spaces
Hospital premises |
| IP Rating |
IP20
|
| Nominal Voltage (V) |
240 V |
| Mains Current(A) |
0.160 A |
| Power Factor |
0.95 |
| THD (%) |
<10% |
| Colour Temp. (CCT) |
6500 K |
| CRI (Ra) |
>80 |
| System Lumens (lm) |
4320 lm |
| Lumen Per Watt |
120 lm/Watt |
| Colour of Fixture |
White |
| Weight (kg) |
1.7 kg |
| Length (l) |
595 mm |
| Width (w) |
595 mm |
| Height (h) |
38 mm |
| Cutout Size (in mm) |
580 mm x 580 mm |
