Product Description |
Details |
Specifications |
◦White powder coated pressure die cast aluminium housing and bottom frame ◦Excellent thermal management with die cast aluminium construction ◦Suitable for Armstrong/CRG/TRAC/USG/Celotex/ POP modular ceiling system ◦Slim luminaire with high transmitive LGP technology ◦High efficiency, non-yellowing PMMA diffuser ◦Specially designed, easy to install mounting clips ◦Complete with LEDs, Driver and accessories prewired up to terminal block |
Accessories & Controls |
Electronic LED driver |
Specifications |
◦High power, high efficiency Chip-On-Board (COB) LED module ◦Pressure die cast aluminum housing, black powder coated for superior thermal performance ◦Suitable for Armstrong/CRG/TRAC/USG/Celotex/POP modular ceiling system ◦High transmitivity, non-yellowing PMMA diffuser ◦Specially designed, easy to install mounting clips ◦CDriver pre-wired up to terminal block |
Application |

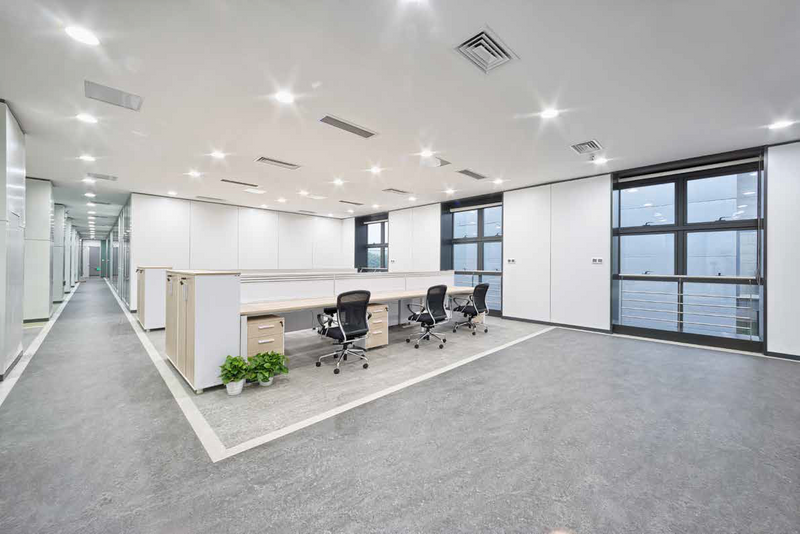

Office, Exhibition Hall, Reception Area, Corridor |
Rated Voltage (V)(AC) |
230 |
Driver type (external/internal) |
Internal |
IP rating |
IP20 |
Housing |
Aluminium die cast |
Mounting Arrangement |
Surface Mount |
Diffuser/Optical material |
HET Plastic diffuser |
Colour Temperature (K) |
6000 K |
LED life with L70 criteria |
35,000 Hrs |
CRI |
80 |
Surge Protection (kV) |
2.5 |
System Wattage(W) |
6 Watt |
PF @ Full load & Rated voltage |
≥0.90 |
THD(Ithd%) @ Full load & Rated voltage |
≤20 |
System lumens (±10%) |
390 |
