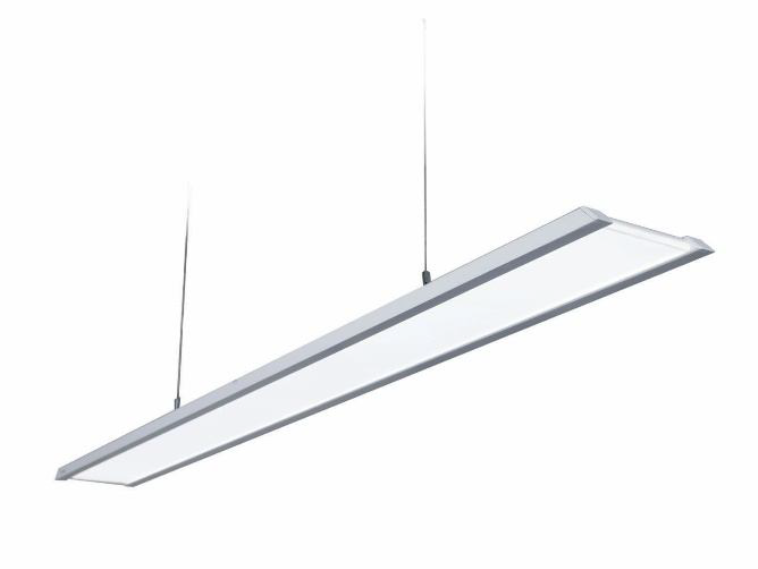

Aslimline is a linear suspended up down edge lit LED luminaire with low glare light. Provides full diffuser glow excellent lighting quality is topped up with high uniformity and higher luminaire efficacy. Slimmest suspended luminaire with efficient LEDs and edge-lit optics, for contemporary workspaces. Item Code: LM77-441-XXX-57-V1 Product Details: - Product...
Aslimline is a linear suspended up down edge lit LED luminaire with low glare light. Provides full diffuser glow excellent lighting quality is topped up with high uniformity and higher luminaire efficacy. Slimmest suspended luminaire with efficient LEDs and edge-lit optics, for contemporary workspaces. Item Code: LM77-441-XXX-57-V1
Product Details: -
| Product Description | Details |
| Specifications | · White Matt Powder Coated extruded aluminum Housing · No visible hardware on external surface · Edge lit optics derived from Reflector+ Light guide plate+ Diffuser configuration. · With option of diffuser with UGR<19 · With Option of Analog dimming · With option of DALI dimming · With option of up down light · Thoughtfully designed · IS 10322 part 5/Sec 1 2012 |
| Feature/ Benefits | Sleek and seamless Aesthetics Provision for end to end connection Product looks esthetically neat and clean Better Light transmission and creates perfect diffusion of light Provides low glare with uniform light output Product is Analog dimming compatible Product is DALI dimming Compatible Product is Direct / Indirect lighting Easy Installation and long service life Comply for general purpose lighting |

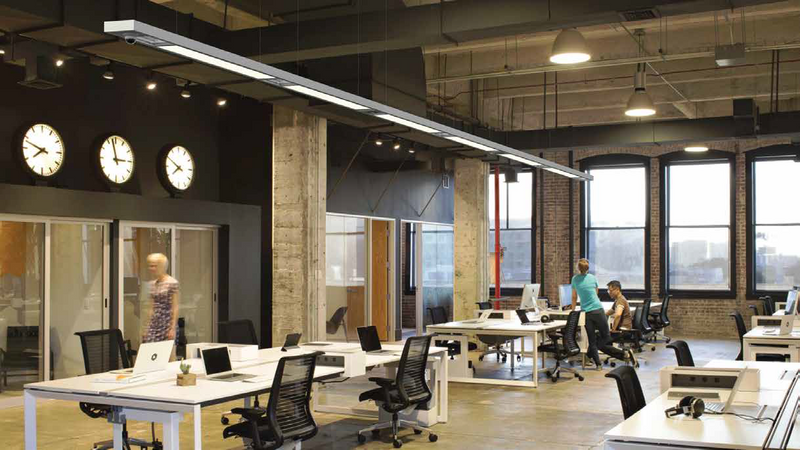

| Applications | Ideal for Suspended application like work area / office spaces, meeting rooms and refurbish application. |
| Accessories | In- built electronic LED driver Complete with LEDs and drivers pre-wired up to terminal block to connect in coming power 4way 10Amps GFP mains connector |
| Installation | Universal suspension system with quick onsite adjustment: LMX 771 suitable for installation on RCC ceiling LMX 772 suitable for installation on modular grid Armstrong prelude ceiling LMX 773 suitable for installation on modular grid Armstrong silhouette ceiling. Continuous row installation: using end to end connecting clamp |
| Power (W) +/-10% | 32 |
| Rated Voltage (V) | 240 |
| IP rating | IP20 |
