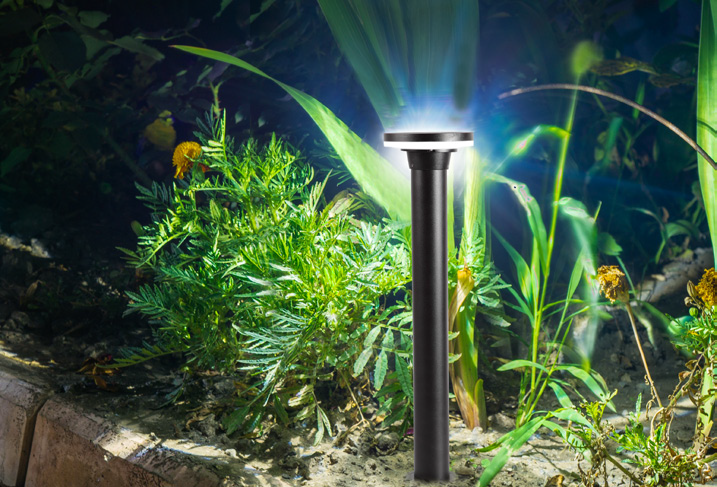

New generation, energy saving, environmental friendly, long life aesthetically designed die-cast aluminium landscape luminaire for downward lighting with mid power LED as light source. Item Code: UFOBLS10WLED830PSYMTOPCM Project Details: - Product Description Details Wattage 10 Watt Average life 50000 Hours Housing & Finish Housing made up of aluminum pipe UV protected...
New generation, energy saving, environmental friendly, long life aesthetically designed die-cast aluminium landscape luminaire for downward lighting with mid power LED as light source. Item Code: UFOBLS10WLED830PSYMTOPCM
Project Details: -
| Product Description | Details |
| Wattage | 10 Watt |
| Average life | 50000 Hours |
| Housing & Finish | Housing made up of aluminum pipe UV protected Pure polyester powder coated black after phosphochromate treatment It consists of aluminum heat sink for effective thermal management, sturdiness & excellent corrosion resistant. Mounting flange of MS sand casting is used at the bottom. |
| Light source | High efficiency long life LED module with SMD LED package mounted on MCPCB. Lumen efficacy of LED >130 lm/W (For detailed photometric data, please refer LM79 report & IES file). |
| Cover | PC diffuser in round shape is used for glare free uniform light distribution. |
| Electronic driver | Powered by built-in, isolated, potted electronic LED driver in ABS housing with APFC (SMPS based constant current supply) with lower THD, Output Short / Open Circuit protection, Over Voltage protection, Surge Voltage protection 3.0KV (CM & DM) & other safety test as per IS 15885 Part-2/Sec 13. |
| Mounting | Fixed to ground by means of 2 nos. M10 bolts (max). |
| IP Rating | IP65 |
| IK Rating | IK07 |
| Nominal Voltage (V) | 240 V |
| Mains Current (A) | 0.045 |
| Power Factor | 0.95 |
| THD | ≤20 |
| Colour Temp. (CCT) | 3000 K |
| CRI (Ra) | ≥80 |
| System Lumens (lm) | 720 Lumens |
| Colour of Fixture | Black |
| Weight (kg) | 2.0 Kg |
| Height (h) | 600 mm |
| Cutout Size (in mm) | 150 mm |
