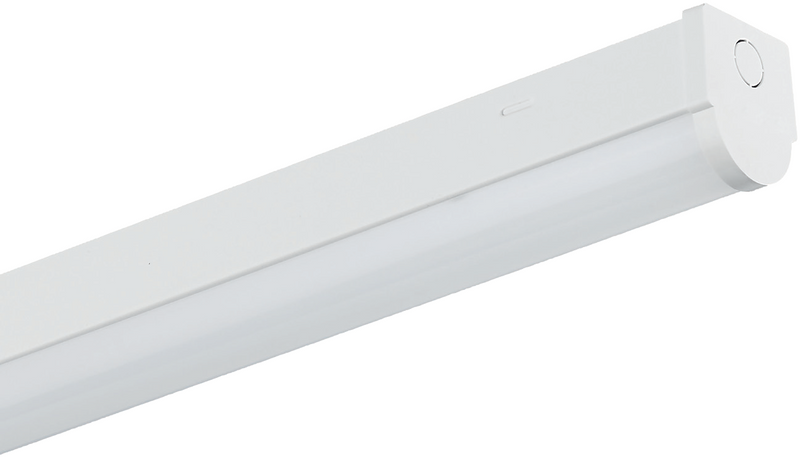

HAVELLS STOUT PLUS BATTEN 40 WATT 5700 K
Code:
Rs. 1,996.00 Rs. 4,300.00
Stout Plus LED is a complete range of LED battens to replace traditional T8 battens (600mm & 1200mm). The range is perfect for lighting large areas such as corridors, warehouses & general purpose spaces. Item Code: STOUTPLUS1200BS40WLED857SPCHW Product Details: - Product Description Details...
Request a personalised quote
Need a bulk order or project quotation? Send your requirements for a personalised quote.
No obligation. Just your quote.
Product Details

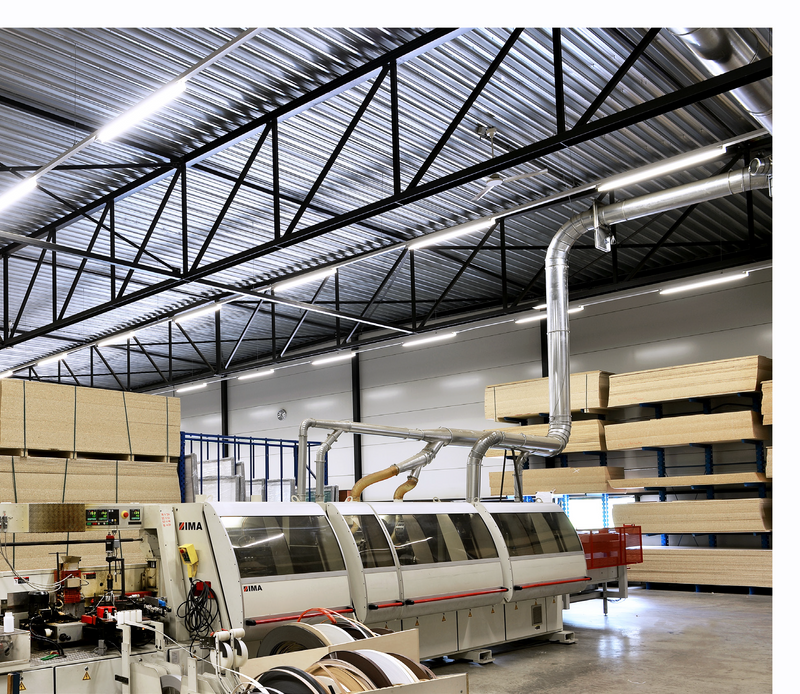

Stout Plus LED is a complete range of LED battens to replace traditional T8 battens (600mm & 1200mm). The range is perfect for lighting large areas such as corridors, warehouses & general purpose spaces. Item Code: STOUTPLUS1200BS40WLED857SPCHW
Product Details: -
| Product Description | Details |
| Wattage | 40 Watt |
| Burning Hours | 50000 Hours |
| Housing | CRCA housing white powder coated for efficient thermal Management. |
| Diffuser | Milky white, polycarbonate diffuser, for glare free efficient light distribution. |
| End caps | Elegantly designed white coloured ABS end caps to enhance the aesthetic view of the fixture. |
| Light source | High efficiency long life LED package with lumen efficacy of 140lm/W with a viewing angle of 120° to ensure better lumen output ( For detailed photometric data, please refer LM79 report & IES file). |
| Control Gear | Powered by an Integral electronic driver (SMPS based constant current supply) with Output Short-circuit protection, Surge protection & other safety test as per IS:15885 Part 2/Sec 13. |
| Mounting | Can be mounted on ceiling /wall with screws at CD of 1046mm, it can also be suspended by Dia 19mm conduit pipe at CD of 900mm. |
| IP Rating | IP20 |
| Nominal Voltage (V) | 240 V |
| Mains Current (A) | 0.170 |
| Power Factor | 0.95 |
| THD (%) | ≤10 |
| Colour Temp. (CCT) | 5700 K |
| CRI (Ra) | ≥80 |
| System Lumens (lm) | 4100 Lumens |
| Colour of Fixture | White |
| Weight (kg) | 2.1 Kg |
| Length (l) | 1224 mm |
| Width (w) | 38 mm |
| Height (h) | 68 mm |
