New generation, Energy Saving, aesthetically designed, Recessed mounted independent LED Module Pressure die-cast Aluminum heat sink & high efficiency long life COB LED mounted on MCPCB with high efficacy of 140 lm/W used for enhanced lumen output. The LED module offer a flexibility to meet application requirements from wide range of...

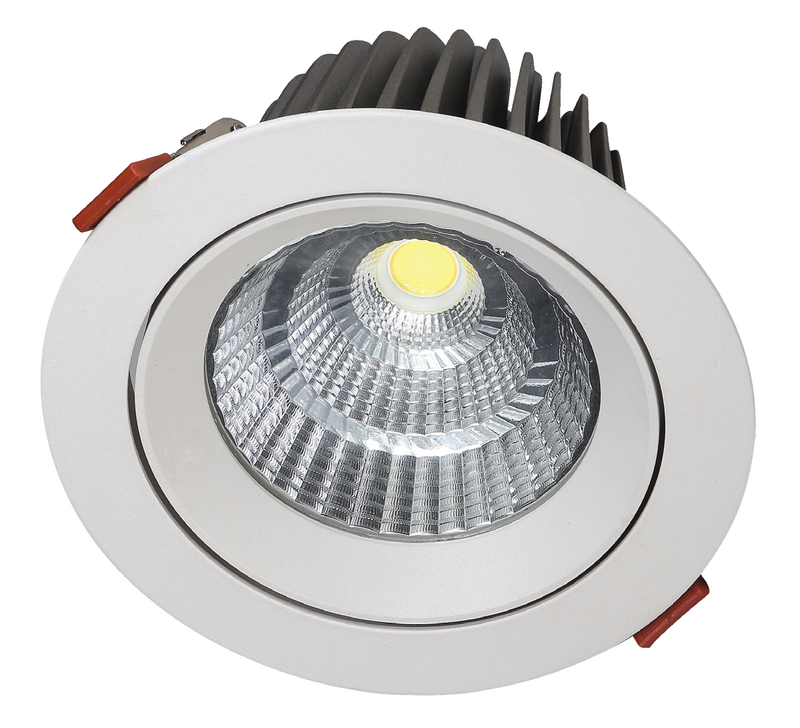

New generation, Energy Saving, aesthetically designed, Recessed mounted independent LED Module Pressure die-cast Aluminum heat sink & high efficiency long life COB LED mounted on MCPCB with high efficacy of 140 lm/W used for enhanced lumen output. The LED module offer a flexibility to meet application requirements from wide range of available options. The choice of operation includes operation on DC/solar panel to compatible AC LED drivers for standard or dimmable operations including Analogue /DALI /Wireless dimmable smart options. Item Code: SPARKLEPROADJDLR30W857MOD40D
Product Details: -
| Product Description | Details |
| Wattage | 30 Watt |
| Average life | 35000 Hours |
| Housing | White powder coated, elegantly designed pressure die-cast aluminium housing / heat sink for efficient heat dissipation & White PC ring for holding the diffuser. Swivels 15° Vertical. |
| Light source | High efficiency long life COB LED mounted on MCPCB. Lumen efficacy of LED >140 lm/W with viewing angle 120º to ensure better uniformity of light distribution. |
| Optics | High purity faceted PC metalized glossy reflector. to enhance the lumen output of the fixture (For detailed photometric data,please refer lm79 report & IES file). |
| Cover | High quality Clear glass for uniform light distribution. |
| Mounting | Fixed into false ceiling with 2 nos SS spring clamps provided with the fixture. |
| Warning | Module should not be used directly with AC supply. use suitable LED Driver. |
| IP Rating | IP20 |
| IK Rating | IK03 |
| Nominal Voltage (V) | 240 V |
| Mains Current (A) | 0.135 A |
| Power Factor | 0.95 |
| THD | ≤10 |
| Colour Temp. (CCT) | 5700 K |
| CRI (Ra) | ≥80 |
| System Lumens (lm) | 3000 Lumens |
| Colour of Fixture | White |
| Weight (kg) | 0.750 Kg |
| Height (h) | 98 mm |
| Cutout Size (in mm) | 150 mm |
