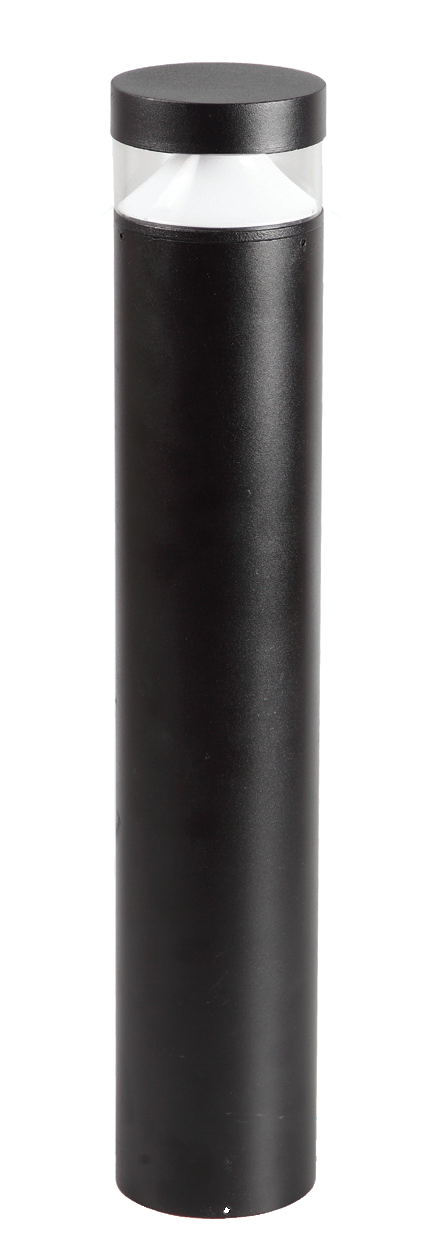

HAVELLS MINI MOUNT LED BOLLARD 10 WATT 5700 K 1000 MM
Code:
Rs. 4,309.00 Rs. 11,990.00

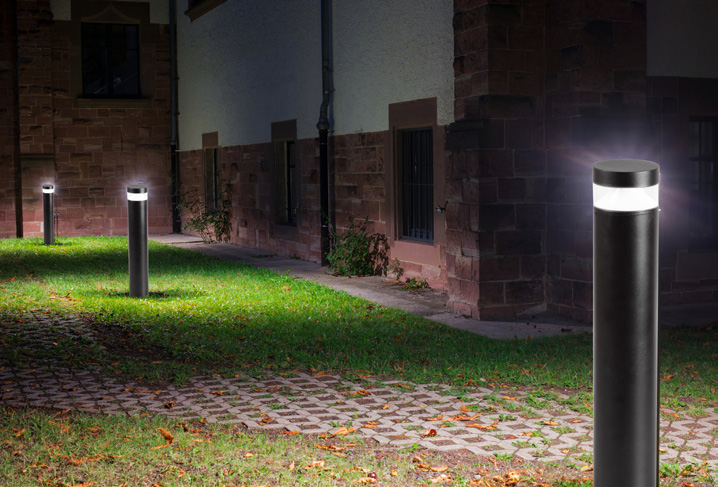

LANKNew generation LED Bollard, energy saving, environmental friendly, long life, aesthetically designed with symmetrical light distribution, die-cast aluminium landscape luminaire with mid power LED as light source. Item Code: MINIMOUNTBL10WLED857PSYMTOPMMAM Product Details: - Product Description Details Wattage 10 Watt Average life 50000...
Request a personalised quote
Need a bulk order or project quotation? Send your requirements for a personalised quote.
No obligation. Just your quote.
Product Details
LANKNew generation LED Bollard, energy saving, environmental friendly, long life, aesthetically designed with symmetrical light distribution, die-cast aluminium landscape luminaire with mid power LED as light source. Item Code: MINIMOUNTBL10WLED857PSYMTOPMMAM
Product Details: -
| Product Description | Details |
| Wattage | 10 Watt |
| Average life | 50000 Hours |
| Housing | Housing made up of aluminum pipe UV protected pure polyester powder coated black after phosphochromate treatment It consists of aluminum heat sink for effective thermalLighting management, sturdiness & excellent corrosion resistant. Mounting flange of MS sand casting is used at the bottom. |
| Light source | High efficiency long life LED module with SMD LED package mounted on MCPCB. Lumen efficacy of LED >130 lm/W (For detailed photometric data,please refer LM79 report & IES file). |
| Cover | Clear diffuser is used for glare free uniform light distribution. |
| Electronic Driver | Powered by built-in, isolated, potted electronic LED driver in ABS housing with APFC (SMPS based constant current supply) with lower THD, Output Short / Open Circuit protection, Over Voltage protection, Surge Voltage protection 3.0KV (CM & DM) & other safety test as per IS 15885 Part-2/Sec 13. |
| Mounting | Fixed to ground by means of 2 nos. M10 bolts (max). |
| IP Rating | IP65 |
| IK Rating | IK07 |
| Nominal Voltage (V) | 240 V |
| Mains Current (A) | 0.045 |
| Power Factor | 0.95 |
| THD | ≤20 |
| Colour Temp. (CCT) | 5700 K |
| CRI (Ra) | ≥80 |
| System Lumens (lm) | 550 Lumens |
| Colour of Fixture | Black |
| Weight (kg) | 3.0 Kg |
| Height (h) | 1000 mm |
| Cutout Size (in mm) | 100 mm |
