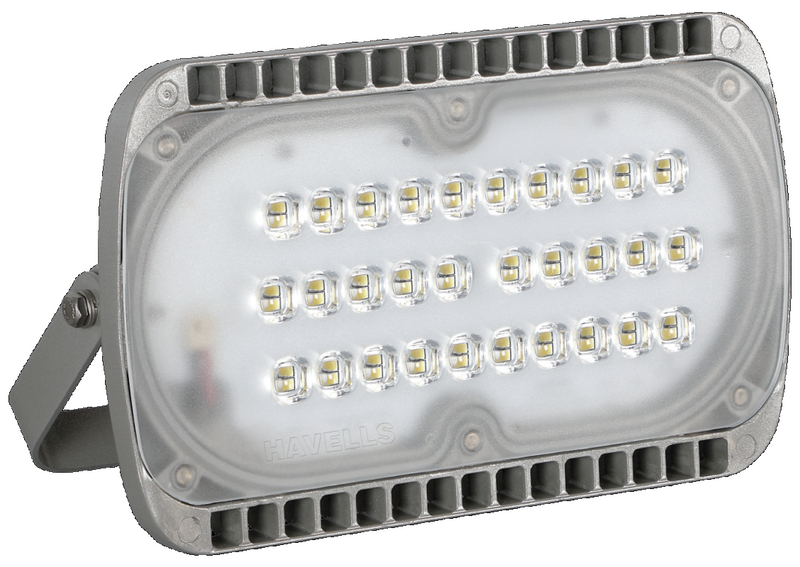

Energy saving, environmental friendly, long life, one design for aesthetic consistancy in multi purpose application with SMD LEDs as light source with driver included, suitable for highlighting architectural features or Area lighting. Also suitable to rough services/ installations. Item Code: JETAQUANTOPLUSFLS30WLED730SYMPCG Product Details: - Product Description Details Wattage 30 Watt Average...
Energy saving, environmental friendly, long life, one design for aesthetic consistancy in multi purpose application with SMD LEDs as light source with driver included, suitable for highlighting architectural features or Area lighting. Also suitable to rough services/ installations. Item Code: JETAQUANTOPLUSFLS30WLED730SYMPCG
Product Details: -
| Product Description | Details |
| Wattage | 30 Watt |
| Average life | 50000 Hours |
| Housing | Die-cast aluminium housing (heat sink) for efficient thermal management, sturdiness & excellent corrosion resistant. SS Hardwares, silicon gasket and Cable gland is used for cable entry for effective ingress protection. |
| Optics | UV Stablized, polycarbonate cover with integrated lens to ensure better light distribution. (For detailed photometric data, Please refer LM79 report & IES file). |
| Light source | High efficiency long life LED module with SMD LED package mounted on MCPCB. Lumen efficacy of LED >140 lm/W and viewing angle of 120° to ensure better uniformity. |
| Mounting | 2 elliptical slots of 14x8 mm with pitch center distance of 114 mm provided on Adjustable Powder coated cradle for surface mounting. |
| Electronic Driver | Powered by an Built-In Potted, isolated electronic LED driver (SMPS based constant current supply) with lower THD, Output Open / Short Circuit protection, Over Voltage protection, Surge Voltage Protection & other safety test as per IS 15885 Part-2/Sec 13 |
| IP Rating | IP65 |
| IK Rating | IK07 |
| Nominal Voltage (V) | 240 V |
| Mains Current (A) | 0.150 A |
| Power Factor | 0.95 |
| THD | ≤10 |
| Colour Temp. (CCT) | 3000 K |
| CRI (Ra) | ≥70 |
| System Lumens (lm) | 3000 Lumens |
| Colour of Fixture | Grey |
| Weight (kg) | 1.0 kg |
| Length (l) | 250 mm |
| Width (w) | 150 mm |
| Height (h) | 50 mm |
Rs. 589.00
Rs. 2,500.00
