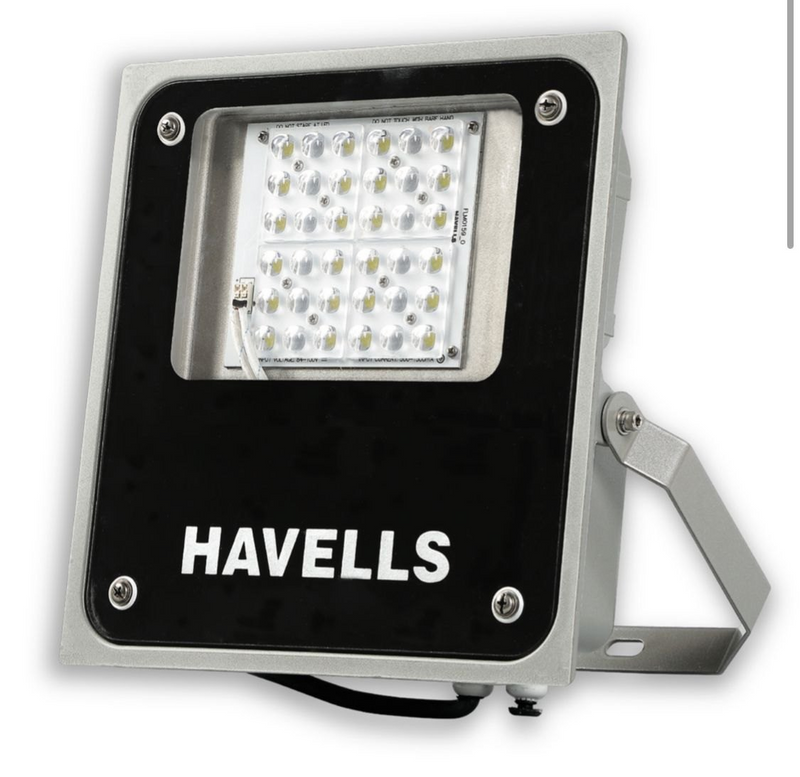

Product Description |
Details |
Wattage |
70 Watt |
Average life |
50000 Hours |
Housing |
Epoxy powder coated Pressure die cast aluminium housing in grey finish with aesthetically designed heat sink for efficient thermal management, sturdiness & excellent corrosion resistant. M16 size gland is used for cable entry and provision for loopin-loopout. |
Light source |
High efficiency long life LED module with SMD LED package mounted on MCPCB. Lumen efficacy of LED >140 lm/W and viewing angle of 120° to ensure better uniformity. |
Lens & Cover |
PC Lens with Wide beam light distribution and Toughened glass fixed to housing with 04 Nos screws (For detailed photometric data, please refer LM79 report & IES file). |
Electronic Driver |
Built-in potted, electronic LED driver with APFC, lower THD, Open Circuit Protection, Over Voltage Protection, Phase to Phase Protection, Surge Voltage Protection upto 10kV with built In SPD & other safety test as per IS 15885 Part-2/Sec 13. |
Mounting |
Wall or surface mounting using adjustable MS cradle of thickness 2 mm. Two elliptical slots of Ø9.0mm at a distance of 120 mm is also provided on the cradle. Refer the Bracket diagram shown below for details on mounting holes |
IP Rating |
IP66 |
IK Rating |
IK07 |
Nominal Voltage (V) |
240 V |
Mains Current (A) |
0.310 A |
Power Factor |
0.95 |
THD |
≤10 |
Colour Temp. (CCT) |
5700 K |
CRI (Ra) |
≥70 |
System Lumens (lm) |
7700 Lumens |
Colour of Fixture |
Grey |
Weight (kg) |
3.0 kg |
Length (l) |
282 mm |
Width (w) |
274 mm |
Height (h) |
66 mm |
