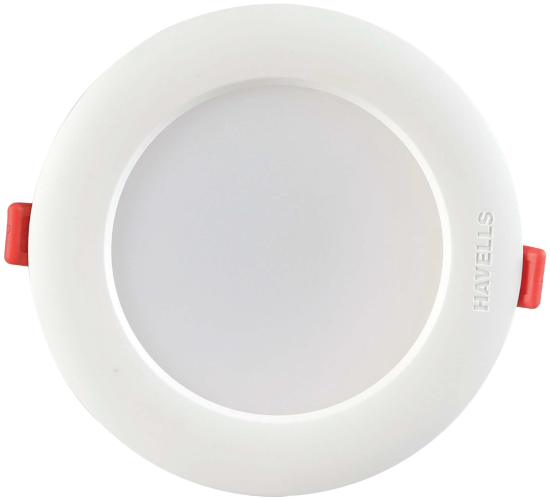

HAVELLS INTEGRA NXT ROUND DOWNLIGHTER 12 WATT 5700 K
Code:
Rs. 896.00 Rs. 1,587.00
Recess mounted downlighter with deep drawn aluminium heat sink & PC diffuser in white powder coated finish with integral electronic LED driver. Item Code: INTEGRANXTDLR12WLED857S Product Details: - Product Description Details Wattage 12 Watt Average life 50000 Hours Housing White powder coated, elegantly designed...
Request a personalised quote
Need a bulk order or project quotation? Send your requirements for a personalised quote.
No obligation. Just your quote.
Product Details
Recess mounted downlighter with deep drawn aluminium heat sink & PC diffuser in white powder coated finish with integral electronic LED driver. Item Code: INTEGRANXTDLR12WLED857S
Product Details: -
| Product Description | Details |
| Wattage | 12 Watt |
| Average life | 50000 Hours |
| Housing | White powder coated, elegantly designed High Purity (>99%) Aluminium housing for efficient dissipation and white polycarbonate ring for holding the diffuser. |
| Light source | High efficiency long life SMD LED mounted on MCPCB with high LED efficacy of 165 lm/W used to enhance the lumen output. |
| Reflector | Glossy finish white powder coated reflector to enhance the lumen output of the fixture. |
| Optics | High quality polycarbonate opal concave diffuser to enhance the aesthic of the fixture and to provide glare free uniform light distribution (For detailed photometric data,please refer LM79 report & IES file). |
| Electronic Driver | Powered by Independent SMPS based constant current electronic driver with lower THD, Output Short Circuit Protection, Surge Voltage Protection. |
| Mounting | Suitable for Surface Mounting, Back CRCA mounting plate is fixed to the wall/ceiling by 2 holes of Ø4 mm provided in it at a center distance (D) and then fixture is fit to the mounting plate by rotating in anti-clockwise direction. |
| IP Rating | IP20 |
| IK Rating | IK03 |
| Nominal Voltage (V) | 240 V |
| Mains Current (A) | 0.060 A |
| Power Factor | 0.95 |
| THD | ≤10 |
| Colour Temp. (CCT) | 5700 K |
| CRI (Ra) | ≥80 |
| System Lumens (lm) | 1200 Lumens |
| Colour of Fixture | White |
| Weight (kg) | 0.300 Kg |
| Height (h) | 58 mm |
| Cutout Size (in mm) | 170 mm |
