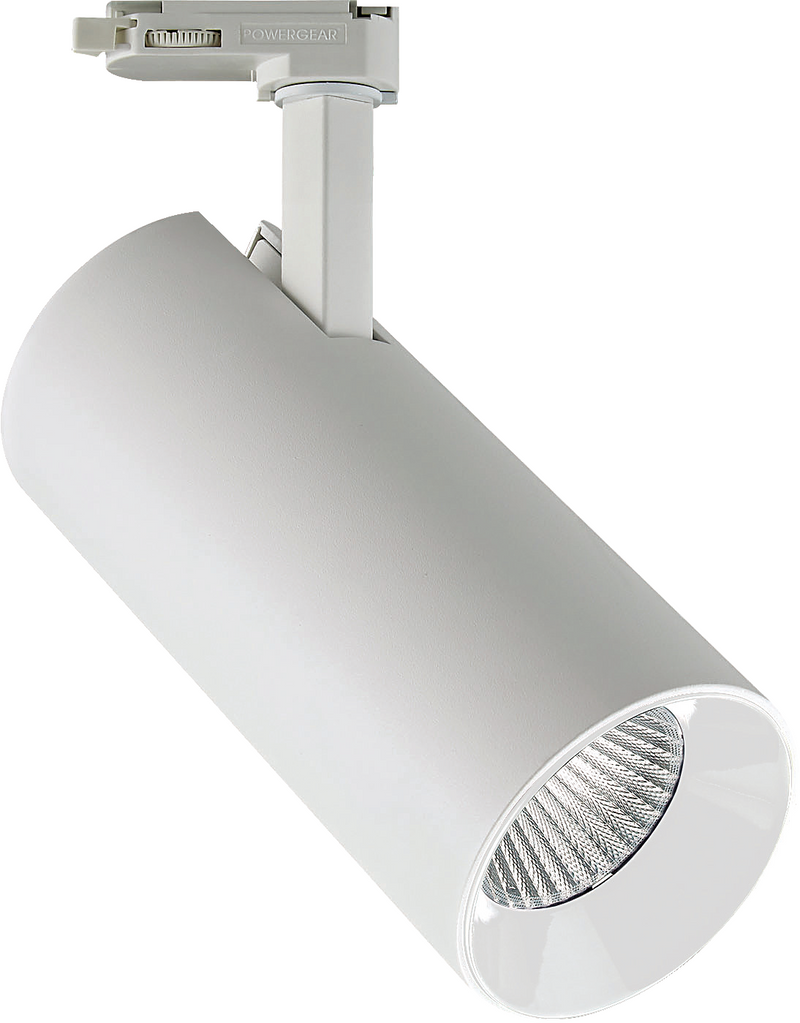

| Product Description |
Details |
| Wattage |
25 Watt |
| Average life |
35000 Hours |
| Housing & Finish |
Pressure Die-cast aluminium housing (heat sink)with powder coated White finish. |
| Light source |
High efficiency long life COB LED with high efficacy of ≥140 lm/W. |
| Optics |
PC diffuser in clear finish for glare free uniform light distribution along with Aluminum reflector to enhance the lumen output of the fixture (For detailed photometric data, please refer LM79 report & IES file). |
| Electronic Driver |
Powered by a Built-in isolated electronic LED driver in PC housing with Output Short Circuit protection, Over Voltage protection, Surge oltage protection and other safety test as per IS:15885 Part 2/Sec 13. |
| Mounting |
Suitable for installation with Single phase + Neutral +Ground (3 wire track) Refer installation instruction sheet. |
| Applications |
Airport/Lounges Warehouses Hotel lobbies / Waiting areas Factories/Workshop Supermarket |
| IP Rating |
IP20 |
| Nominal Voltage (V) |
240 V |
| Mains Current (A) |
0.138 A |
| Power Factor |
0.95 |
| THD (%) |
≥15 |
| Beam Angle |
60° |
| Colour Temp. (CCT) |
4000 K |
| CRI (Ra) |
≥80 |
| Lumen (lm) |
2250 Lumens |
| Colour of Fixture |
White |
| Cutout Ø |
75 mm |
| Height (h) |
170 mm |
