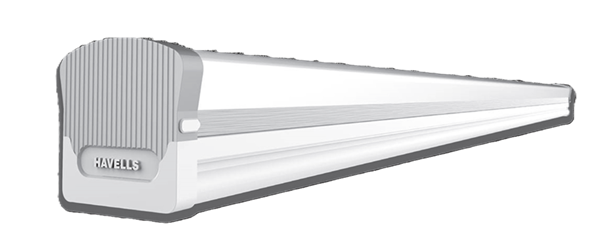

HAVELLS STOUT MINI 20 WATT LED BATTEN 6500 K
Code:
Rs. 1,499.00 Rs. 3,500.00
Surface /Suspended and wall mounted LED batten, CRCA housing provided for efficient heat dissipation with polycarbonate diffuser & built-In electronic driver. Item Code:- STOUTMINI1200BS20WLED865SPCWH Product Details:- Product Description Details Features & Benefits • Delivers excellent illumination & comfort in high ceiling areas• Long...
Request a personalised quote
Need a bulk order or project quotation? Send your requirements for a personalised quote.
No obligation. Just your quote.
Product Details
Surface /Suspended and wall mounted LED batten, CRCA housing provided for efficient heat dissipation with polycarbonate diffuser & built-In electronic driver. Item Code:- STOUTMINI1200BS20WLED865SPCWH
Product Details:-
| Product Description | Details |
| Features & Benefits | • Delivers excellent illumination & comfort in high ceiling areas • Long life & photobiologically safe LED’s • High performance electronic driver ensures zero maintenance • No harmful UV & IR radiations • Environment friendly as it does not contain Mercury • Instant light with low running temperatures • Operating temperature: -10 °C to +45 °C • Operating voltage range: 140 V - 270 V • Average life L70B50: 50000 hours |
| Housing | CRCA housing white powder coated for efficient thermal Management. |
| Diffuser | Milky white, polycarbonate diffuser, for glare free efficient light distribution. |
| End caps | Elegantly designed white & grey coloured ABS end caps to enhance the aesthetic view of the fixture. |
| Light source | High efficiency long life LED chips with lumen efficacy of 125lm/W with a viewing angle of 120° to ensure better lumen output. |
| Electronic driver | Powered by built-in LED driver (SMPS based constant current supply) with Output Short-circuit protection, Surge protection & other safety test as per IS:15885 Part 2/Sec 13. |
| Mounting | Can be mounted on ceiling /wall by means of screws at CD of 900mm. It can also be suspended by Dia 19mm conduit pipe at CD of 600mm or Suspension wires.(To be ordered separately) |

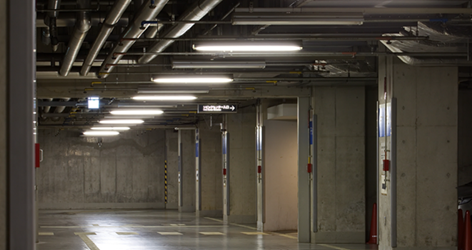

| Applications | Corporate offices Banks & ATM outlets Hospital premises Parking Spaces Basement Areas Corridor/Staircases Industries |
| IP Rating | IP20 |
| Nominal Voltage (V) | 240 V |
| Mains Current (A) | 0.100 |
| Power Factor | 0.95 |
| THD (%) | ≤10 |
| Colour Temp. (CCT) | 6500 K |
| CRI (Ra) | ≥80 |
| System Lumens (lm) | 2400 lm |
| Colour of Fixture | White |
| Weight (kg) | 1.21 kg |
