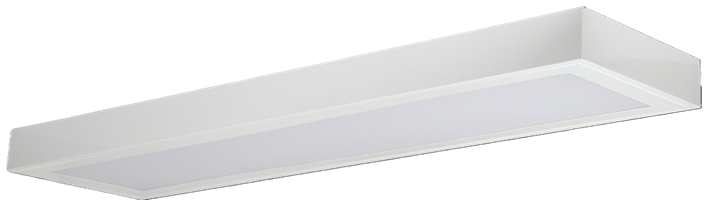

HAVELLS PLANO SURFACE 4×1 36 WATT PANEL 5700 K
Code:
Rs. 1,980.00 Rs. 8,000.00
Aesthetically designed 4x1 LED flat panel for surface mounting which provides soft-light and glare free symmetrical illumination. Item Code:- PLANOSUR4X1PLS36WLED857G2S Product Details:- Product Description Details Wattage 36 Watt Features & Benefits • Excellent efficacy & performance suitable for high ceiling areas• Long life...
Categories:4x1 PanelsHavellsLightingLightsPremium LED Panel Lights Online | Wipro & Havells Panel LightsProfessional Luminaires
Request a personalised quote
Need a bulk order or project quotation? Send your requirements for a personalised quote.
No obligation. Just your quote.
Product Details
Aesthetically designed 4x1 LED flat panel for surface mounting which provides soft-light and glare free symmetrical illumination. Item Code:- PLANOSUR4X1PLS36WLED857G2S
Product Details:-
| Product Description | Details |
| Wattage | 36 Watt |
| Features & Benefits | • Excellent efficacy & performance suitable for high ceiling areas • Long life & photobiologically safe LED’s • High performance electronic driver ensures zero maintenance • No harmful UV & IR radiations • Environment friendly as it does not contain Mercury • Instant light with low running temperatures • Operating temperature: -10 °C to +35 °C • Operating voltage range: 140 V - 270 V • Average life L70B50: 50000 hours |
| Housing & Finish | CRCA powder coated white after phosphochromate treatment |
| Optics | High transmittance polystyrene opal diffuser for glare free symmetric light distribution. |
| Light source | High efficiency long life LED package in integral module with lumen efficacy of >150 lm/W and viewing angle of 120° to ensure better uniformity. |
| Electronic driver | Powered by an independent, SELV Output electronic LED driver (SMPS based constant current supply) with Output Short-circuit protection, Surge protection & other reliability test as per IS: 15885 Part 2/Sec 13. |
| Mounting | Provision for surface mounting through 4 nos. holes of Ø5 mm provided at the back of the fixture. |

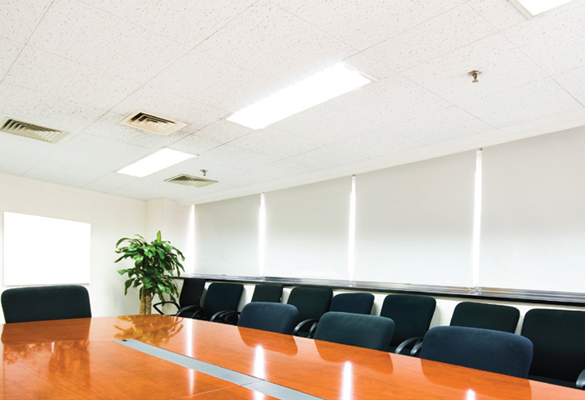

| Applications | Airport lounges Corporate offices Banks & ATM outlets Software development centers Hospital premises |
| IP Rating | IP20 |
| Nominal Voltage (V) | 240 V |
| Mains Current(A) | 0.170 A |
| Power Factor | 0.95 |
| THD (%) | ≤10 |
| Colour Temp. (CCT) | 5700 K |
| CRI (Ra) | ≥80 |
| System Lumens (lm) | 3950 lm |
| Colour of Fixture | White |
| Weight (kg) | 4.8 kg |
