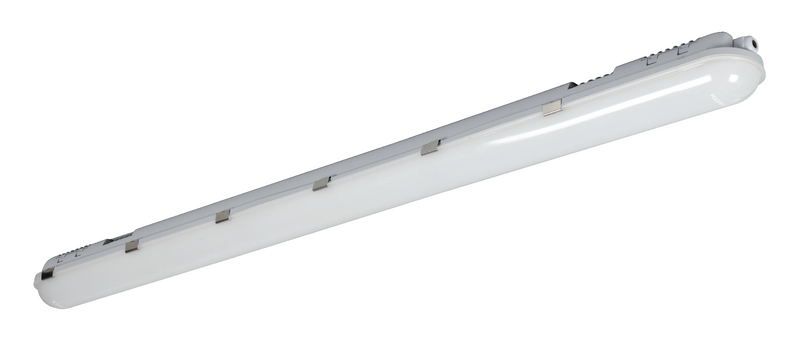

HAVELLS MAGNUM GRAND NEO 36 WATT 5700 K
Code:
Rs. 2,132.00 Rs. 6,000.00
Energy saving, environmental friendly, long life, corrosion resistant, impact proof, surface mounting IP66 luminaire with PC housing & opal finish cover suitable for wet location. Item Code: MAGNUMGRANDNEOIP6636WLED857SPC Product Details: - Product Description Details Wattage 36 Watt Average life 50000 Hours Housing &...
Request a personalised quote
Need a bulk order or project quotation? Send your requirements for a personalised quote.
No obligation. Just your quote.
Product Details
Energy saving, environmental friendly, long life, corrosion resistant, impact proof, surface mounting IP66 luminaire with PC housing & opal finish cover suitable for wet location. Item Code: MAGNUMGRANDNEOIP6636WLED857SPC
Product Details: -
| Product Description | Details |
| Wattage | 36 Watt |
| Average life | 50000 Hours |
| Housing & Finish | Made up of scratch resistant unbreakable polycarbonate in grey finish. PG 16x1.5 cable gland is used for maintaining ingress protection. |
| Light source | High efficiency long life LED package in integral module with lumen efficacy of >140 lm/W and viewing angle of 120° to ensure better uniformity. |
| Cover | High quality polycarbonate diffuser in opal finish for glare free uniform light distribution, clip fitted to the housing. |
| Reflector | With power coated CRCA sheet acts as reflector and control gear trey. |
| Electronic Driver | Powered by a built-in isolated low THD electronic driver (SMPS based constant current supply) with low THD, Output Short-circuit /Open Circuit protection, Surge protection & Safety test as per IS:15885 Part 2/Sec 13. |
| Mounting | Surface & suspended through 2 nos. SS clamps & screws provided with fixture. |
| IP Rating | IP20 |
| IK Rating | IK07 |
| Nominal Voltage (V) | 240 V |
| Power Factor | 0.95 |
| Colour Temp. (CCT) | 5700 K |
| THD (%) | ≤10 |
| CRI (Ra) | ≥80 |
| Length (l) | 1176 mm |
| Width (w) | 79 mm |
| Height (h) | 67 mm |
| CD of mounting holes (D) (in mm) | 800 mm |
