HAVELLS INTEGRA NXT SURFACE 24 WATT DOWNLIGHTER 5700K
Code:
Rs. 980.00 Rs. 2,250.00
HAVELLS INTEGRA NXT SURFACE 24 WATT DOWNLIGHTER 5700K Surface mounted downlighter with Deep Drawn aluminium heat sink & PC diffuser in white powder coated finish with Independent electronic LED driver. Item Code:-INTEGRANXTDDLRSURD24WLED857S Product Details:- Product Description Details Wattage 24 Watt Features &...
Request a personalised quote
Need a bulk order or project quotation? Send your requirements for a personalised quote.
No obligation. Just your quote.
Product Details

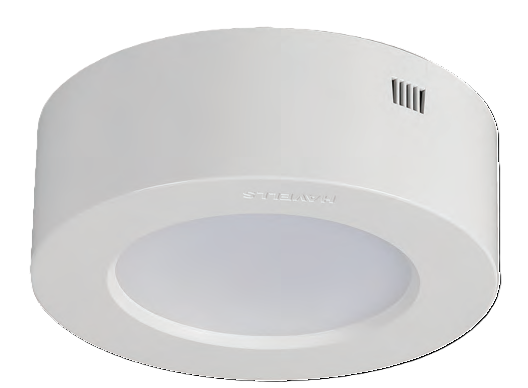

HAVELLS INTEGRA NXT SURFACE 24 WATT DOWNLIGHTER 5700K
Surface mounted downlighter with Deep Drawn aluminium heat sink & PC diffuser in white powder coated finish with Independent electronic LED driver.
Item Code:-INTEGRANXTDDLRSURD24WLED857S
Product Details:-
| Product Description | Details |
| Wattage | 24 Watt |
| Features & Benefits | • Delivers excellent illumination & comfort in high ceiling areas • Long life & photobiologically safe LEDs • High performance electronic driver ensures zero maintenance • No harmful UV & IR radiations • Environment friendly as it does not contain Mercury • Instant light with low running temperatures • Operating temperature: -10 °C to +35 °C • Operating voltage range: 140 V - 270 V |
| Housing & Finish | White powder coated, elegantly designed deep drawn Aluminum housing for efficient dissipation and white polycarbonate ring for holding the diffuser. |
| Light Source | High efficiency long life L70 > 50000 hrs SMD LED mounted on MCPCB with high LED efficacy of 165 lm/W used to enhance the lumen output. |
| Reflector | Glossy finish white powder coated reflector to enhance the lumen output of the fixture. |
| Optics | High quality polycarbonate opal concave diffuser to enhance the aesthic of the fixture and to provide glare free uniform light distribution (For detailed photometric data, please refer LM79 report & IES file). |
| Electronic Driver | Powered by Independent SMPS based constant current electronic driver with lower THD, Output Short Circuit Protection, Surge Voltage Protection. |
| Mounting | Suitable for Surface Mounting, Back CRCA mounting plate is fixed to the wall/ceiling by 2 holes of Ø4 mm provided in it at a center distance( D) and then fixture is fit to the mounting plate by rotating in anti-clockwise direction. |
| Applications | Shopping malls Restaurants Hotel lobbies Waiting areas Modern gyms / Spa Corporate offices |
| IP Rating | IP40 |
| IK Rating | IK03 |
| Nominal Voltage (V) | 240 V |
| Mains Current (A) | 0.105A |
| Power Factor | 0.95 |
| THD (%) | ≤10 |
| Colour Temp. (CCT) | 5700 K |
| CRI (Ra) | ≥80 |
| System Lumens (lm) | 2880 lm |
| Colour of Fixture | White |
| Weight (kg) | 0.300 kg |
| Height (H) | 65 mm |
| Mounting Distance (D) | 165.5 mm |
