HAVELLS INTEGRA NEO RECESS DOWNLIGHTER 18 WATT 5700 K
Code:
Rs. 1,388.00 Rs. 2,567.00
Recess mounted downlighter with pressure die-cast aluminium heat sink & PC diffuser in white powder coated finish with integral electronic low THD (<10%) LED driver. Item Code: INTEGRANEODLR18WLED857S Product Details:- Product Description Details Wattage 18 Watt Average life 50000 Hours Housing White...
Request a personalised quote
Need a bulk order or project quotation? Send your requirements for a personalised quote.
No obligation. Just your quote.
Product Details

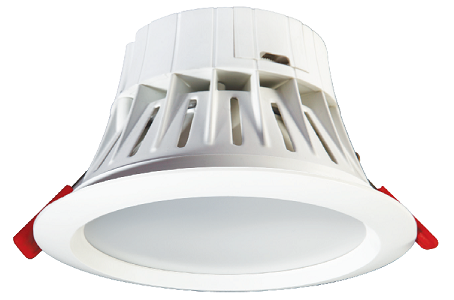

Recess mounted downlighter with pressure die-cast aluminium heat sink & PC diffuser in white powder coated finish with integral electronic low THD (<10%) LED driver. Item Code: INTEGRANEODLR18WLED857S
Product Details:-
| Product Description | Details |
| Wattage | 18 Watt |
| Average life | 50000 Hours |
| Housing | White powder coated, elegantly designed pressure die-cast aluminium heat sink for efficient dissipation & white finish polycarbonate ring for holding the diffuser. |
| Light source | High efficiency long life SMD LED mounted on MCPCB with high LED efficacy of 140 lm/W used to enhance the lumen output |
| Reflector | High reflective polycarbonate conical shaped reflector to enhance the lumen output of the fixture. |
| Optics | High quality polycarbonate opal concave diffuser to enhance the aesthic of the fixture and to provide glare free uniform light distribution (For detailed photometric data,please refer LM79 report & IES file). |
| Electronic Driver | Powered by integral SMPS based constant current electronic driver with lower THD, Output Short Circuit Protection, Surge Voltage Protection and other safety tests as per IS 15885 Part 2/ Sec 13. |
| Mounting | Fixing into false ceiling by 2 nos. SS springs/ clips. |
| IP Rating | IP20 |
| Nominal Voltage (V) | 240 V |
| Mains Current (A) | 0.090 A |
| Power Factor | 0.95 |
| THD | ≤10 |
| Colour Temp. (CCT) | 5700 K |
| CRI (Ra) | ≥80 |
| System Lumens (lm) | 1900 Lumens |
| Colour of Fixture | White |
| Weight (kg) | 0.840 kg |
| Height (h) | 90 mm |
| Cutout Size (in mm) | 175 mm |
