HAVELLS EDGEPRO NEO SQUARE DOWNLIGHTER 12 WATT 5700K
Code:
Rs. 1,080.00 Rs. 1,900.00
HAVELLS EDGEPRO NEO SQUARE DOWNLIGHTER 12 WATT 5700K Recess mounted pressure die-cast aluminium luminaire in powder coated white finish in Square profile with optimized heat sink for efficient heat dissipation and independent electronic LED driver. Item Code: EDGEPRONEOSQLR12WLED857 Product Details: - Product...
Request a personalised quote
Need a bulk order or project quotation? Send your requirements for a personalised quote.
No obligation. Just your quote.
Product Details
HAVELLS EDGEPRO NEO SQUARE DOWNLIGHTER 12 WATT 5700K

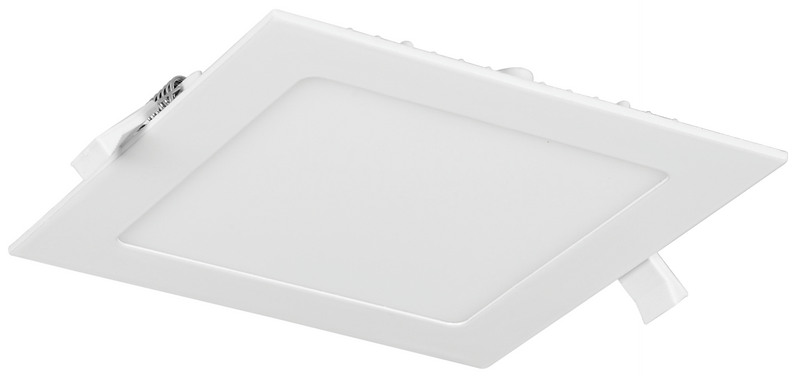

Recess mounted pressure die-cast aluminium luminaire in powder coated white finish in Square profile with optimized heat sink for efficient heat dissipation and independent electronic LED driver.
Item Code: EDGEPRONEOSQLR12WLED857
Product Details: -
| Product Description | Details |
| Wattage | 12 Watt |
| Average life | 35000 Hours |
| Housing | Elegantly designed pressure die-cast aluminium housing & ring for efficient heat dissipation is white powder coated after phosphochromate treatment. |
| Light source | High efficiency long life LED module with SMD LED package. Lumen efficacy of LED >140 lm/W to enhance the lumen output. |
| Optics | High quality PS diffuser in opal finish and PMMA LGP for glare free uniform light distribution (for detailed photometric data, please refer LM79 report & IES files). |
| Electronic Driver | Powered by an independent, isolated, output electronic LED driver (SMPS based constant current supply) with Output Short-circuit protection, Surge Voltage protection & other safety test as per IS:15885 Part 2/Sec 13. |
| Mounting | Fixing into false ceiling by means of 2 nos. SS springs clips provided as per installation instructions. |

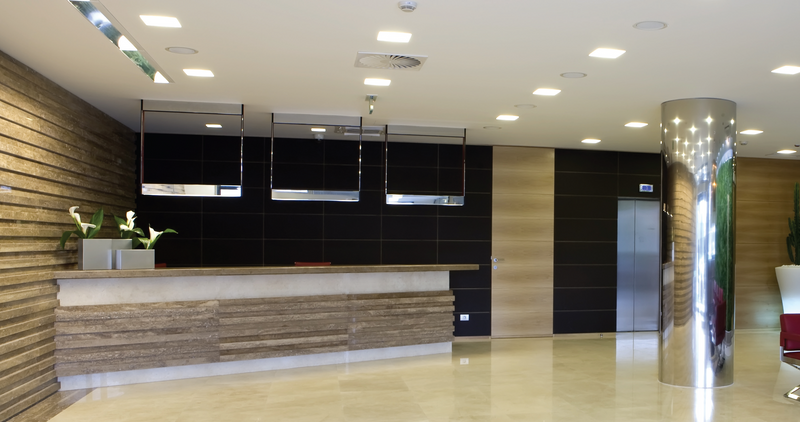

| Applications | Shopping malls Restaurants Hotel lobbies / Waiting areas Modern gyms / Spa Corporate offices |
| IP Rating | IP20 |
| Nominal Voltage (V) | 240 V ac |
| Mains Current (A) | 0.058 A |
| Power Factor | 0.90 |
| THD | ≤20 |
| Colour Temp. (CCT) | 5700 K |
| CRI (Ra) | ≥80 |
| System Lumens (lm) | 1020 Lumens |
| Colour of Fixture | White |
| Weight (kg) | 0.277 Kg |
| Length (L) | 169 mm |
| Width (W) | 169 mm |
| Height (h) | 17.5 mm |
| Cutout Size (in mm) | 155 mm |
