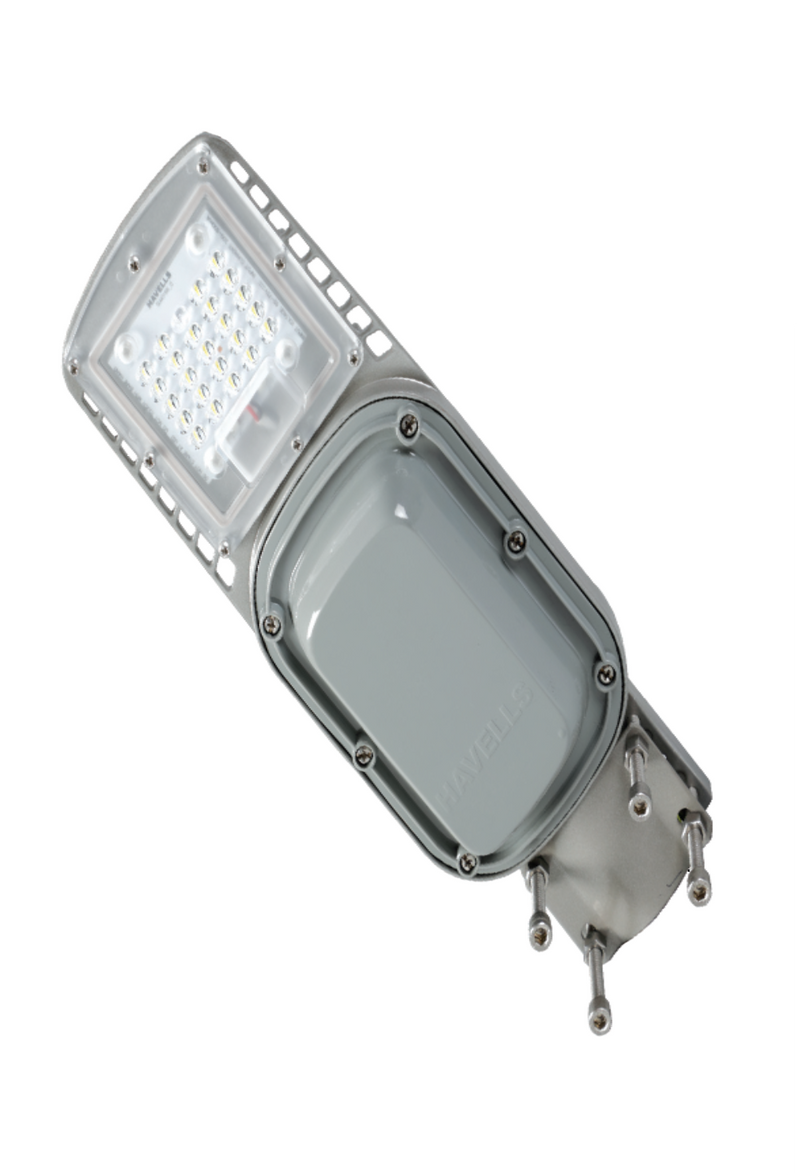

New generation energy saving and environmental friendly long life LED street light made up of pressure die cast aluminium housing with high efficiency LED as lighting source and lens embedded PC cover having Bottom Opening seperate driver compartment with IP66 protection and impact resistance of IK08. Item Code: ENDUASUNDOWNSL30WLED757PASYBOPC Product Details:...
New generation energy saving and environmental friendly long life LED street light made up of pressure die cast aluminium housing with high efficiency LED as lighting source and lens embedded PC cover having Bottom Opening seperate driver compartment with IP66 protection and impact resistance of IK08. Item Code: ENDUASUNDOWNSL30WLED757PASYBOPC
Product Details: -
| Product Description | Details |
| Wattage | 30 Watt |
| Average life | 50000 Hours |
| Housing | Pressure die-cast aluminium alloy for housing (heat sink) for effective thermal management, sturdiness, excellent corrosion resistant, separate optical and control gear compartment & Bottom Opening for easy maintenance. |
| Light source | High efficiency long life LED module with SMD LED package mounted on MCPCB. Lumen efficacy of LED >140 lm/W. |
| Optics | High efficiency polycarbonate UV stablized cover with integrated Lens to ensure Asymmetrical batwing light distribution. (For detailed photometric data, please refer LM79 report & IES file). |
| Electronic Driver | Powered by built-in potted LED driver (SMPS based constant current supply) with lower THD, Output Open / Short Circuit protection, Phase to Phase protection (Operation at 440 V AC), Over Voltage protection, Low Voltage and High Voltage cut-off, Surge Voltage protection upto 4 kV & other safety test as per IS 15885 Part-2/Sec 13. |
| Mounting | Suitable for side entry, pole mounting with bracket arm OD 35 mm-42 mm. Recommended mounting height with suitable inground reinforcement is 3-6 m |
| IP Rating | IP66 |
| IK Rating | IK08 |
| Nominal Voltage (V) | 220 V - 240 V |
| Mains Current (A) | 0.145 A |
| Power Factor | 0.95 |
| THD | ≤10 |
| Colour Temp. (CCT) | 5700 K |
| CRI (Ra) | ≥70 |
| System Lumens (lm) | 3500 Lumens |
| Colour of Fixture | Grey |
| Weight (kg) | 2.8 Kg |
| Length (l) | 307 mm |
| Width (w) | 110 mm |
| Height (H) | 58 mm |
| Mounting Bracket Dia (Ø) | 42 mm |
Rs. 589.00
Rs. 2,500.00
